GM-6 Coefficient of Friction Tester
Product Introduction
GM-6 is used to test the coefficient of friction of plastic film, thin sheet, paper and so on. It is widely used in the packaging industry, film-making companies and packaging material inspection agencies.

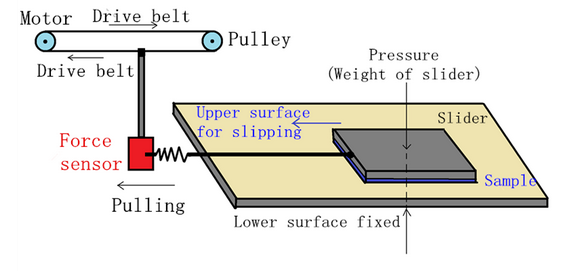

Test Principle
Clamp the strip test sample and wrap the slider with the sample to be tested. Place the slider on the hanging hole of the sensor. Under a certain contact pressure, the conveyor belt is driven by the motor to move the force sensor which moves the two test surfaces relative to each other. The force signal measured by the force sensor is amplified by the integrator and sent to the recorder, and the kinetic friction coefficient and the static friction coefficient are recorded respectively.
Standards
ISO 8295, ASTM D1894, TAPPI T816
Specifications
| Item | Technical Parameters |
|---|---|
| Test Range | 0.001~0.999 |
| Force Range | 0~9.8 N |
| Measurement Accuracy | ±0.5％FS |
| Sliding speed | 0~500 mm/min |
| Stroke | 0~150 mm |
| Sample thickness | ≤2 mm |
| Slider size | 63 mm×63 mm |
| Slider Weight | 200 g±2 g |
| Work platform size | 180 mm×470 mm |
| Monitor | LCD |
| Instrument Size | 470 mm x 340 mm x 220 mm |
| Power | 100 W |
| Power supply | AC 220 V, 50 Hz |
| Weight | 23 kg |
Features
Instrument is stable, reliable and easy to maintain
The force sensor is easy to calibrate, using a special standard block to quickly calibrate, which is convenient and fast. LCD display, which displays the static friction coefficient and kinetic friction coefficient in real time. The supporting control software interface is simple, clear, easy to operate and displays real-time scalable curves. It has scope automatic protection function, a functional modular design and it's easy to maintain.
Intelligent operating system
Test process parameters are set flexibly, with audit tracking function (test tracking, log tracking), to meet the requirements of data traceability and to ensure the safety and integrity of test data.
