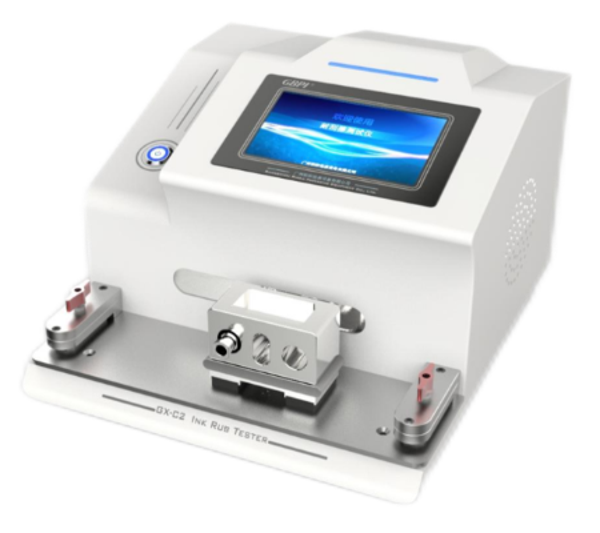

GX-C2 Rub Tester
Product Introduction
GX-C2 Rub Tester is suitable for testing the abrasion resistance of printing ink layer of printed matter, the abrasion resistance of PS plate photosensitive layer and the abrasion resistance of surface coating of related products. It can effectively analyse the problems of poor rub resistance of printed matter, peeling of ink layer film, low printing endurance of PS version and poor coating hardness of other products.
Test Principle
Under a certain pressure, the sample is rubbed against the paper. After a number of frictions, the degree of ink off the sample is checked to determine the scratch resistance of the sample.
Standards
GB/T 17497.1, GB/T 7705, GB/T 7706
Specifications
| Item | Technical Parameters |
|---|---|
| Friction Pressure | 20±0.2N |
| Friction Speed | 43cpm (times/minutes） |
| Friction Area | 240 (L) x 50 (W) mm |
| Friction Times | 1～999999 times |
| Sample Size | 320 (L) x 50 (W) mm (support splicing) |
| Equipment Size | L×W×H:440mm×400mm×200mm |
| Equipment Power | 350W |
| AC Power | AC220V, 50Hz |
Features
- Equipped with a colour touch screen.
- Test quickly and conveniently.
- Fully automatic operation, one-key operation, automatic shutdown, simple and convenient operation.
- Uses high-precision ball screw parts.
- Smooth operation.
- Long life of the testing machine, good long-term stability and energy saving.
- The running speed and number of runs can be changed freely to meet the requirements of different standards.
- High test accuracy.
- The instrument is designed in strict accordance with the standard, effectively ensuring the accuracy of the test data.
- Control to solve the problems of poor abrasion resistance, low abrasion resistance and easy falling off of the ink layer of the printed matter.
- Compatible with the abrasion resistance test of the photosensitive layer of the PS version, analyse and predict the printing endurance of the PS version.
- Built-in printer to print test report.
