GBL-H Tensile Tester
Product Introduction
The popular single-guidance electronic tensile testing machine GBL-H is a mechanical property testing machine which adopts high-precision sensors, and has a force measurement accuracy within ±1 %FS.
It has a fully automatic operation and is equipped with a liquid crystal display screen and real-time display of test curve data and query test report.
It is suitable for stretching, peeling, heat sealing, tearing, etc. of various plastic films, paper aluminium-plastic composite films, various soft elastic materials, rubber sheets, adhesive tapes, adhesives, paper, non-woven fabrics, etc.
The mechanical properties test, such as puncture, conforms to the requirements of the national technical supervision department for test technology, and is widely used in quality inspection, drug inspection, scientific research, packaging, film, food, medicine, daily chemical and other industries.

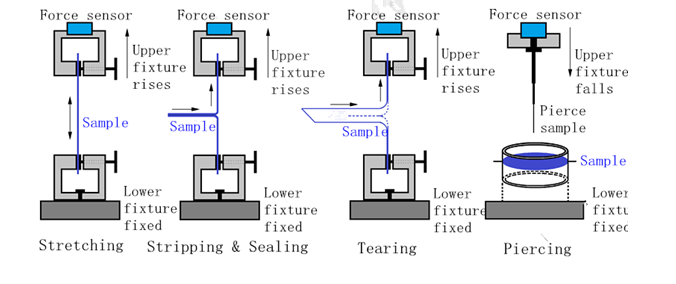

Test Principle
Fix the processed sample between the two chucks of the fixture. Start the instrument to make the two chucks move relative to each other. The force value sensor located on the movable chuck collects the force value change during the test, and the built-in displacement sensor of the machine. The displacement changes are collected to calculate the tensile, peeling, heat sealing, tearing, puncture and other performance indicators of the sample.
Standards
ASTM D828, ASTM E4, ASTM D882, ASTM D1938 , ASTM D3330, ASTM F904, JIS P8113, QB/T 2358
Specifications
| Item | Technical Parameters |
|---|---|
| Force Measuring Range | 0~300 N (0~500 N optional), 1250% elongation |
| Force Measurement Accuracy | Indication value is within ±1%FS (Level 1) |
| Test Speed | 1-500 mm/min |
| Displacement Accuracy | Indication value is within ±1% |
| Effective Test Width | 30 mm (50 mm can be customised) |
| Effective Test Itinerary | 750 mm（1000mm customised） |
| Size | L x W x H：475 mm x 460 mm x 1430 mm |
| Weight | 76.5 kg |
| Power Supply | 220 V, 50 Hz |
| Power | 300 W |
Application
| Plastic Film | Suitable for tests of: plastic films, composite materials, flexible packaging materials, tapes and other products. |
| Composite Film Bag | Suitable for tests of: composite films, co-extruded films, composite bags, retort bags, aluminium-plastic composite bags and other products. |
| Paper | Suitable for tests of: paper, kraft paper, facial tissue, toilet paper and other products. |
| Medical Patches | Suitable for tests of: medical cold compress, plaster and other products. |
| Pressure Sensitive Tapes | Suitable for tests of: cellophane tape, electrical insulating tape, medical zinc oxide adhesive tape and other products. |
